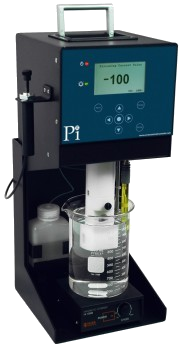

ChargeSense Charge Analyser
Pi’s Charge Analyser for the determination of charge demand at the wet end of a paper machine accurately measures colloidal and ionic charge using the streaming current principle (electrokinetic charge), which is comparable to zeta potential.
Charge demand is determined with polyelectrolyte titration to the isoelectric point, either manually or by use of an automatic titrator.
Pi’s ChargeSense Charge Analyser is intuitive, flexible and gives great repeatable charge demand determinations time after time.
Principle of Operation
Pi’s ChargeSense Charge Analyser allows fast determination of the wet end charge demand, making it an essential tool for papermaking.
The Charge Analyser works by measuring the streaming current produced by colloidal/dissolved species in samples. The samples are taken from various points on the wet end of the papermaking process. It allows for an automatic titration, with inbuilt titration pumps.
The charge demand result can be expressed in microequivalents per litre (μeq/L) or parts per million (ppm).
Key Benefits
Applications
Options
Focus On
Downloads
Standard Features
- LabTrac – accompanying software for extracting and analysing titration data
- Sample volume range of 200-2000ml for greatest accuracy
- Sensitivity adjustment for highly conductive samples
- Measures charge and charge demand
- Sturdy housing for easy mobility, quick set-up, and bench-top stability
- Low maintenance, improved reliability
- Detachable probe and piston to facilitate cleaning and prevent corrosion
- Gain control to amplify low level signals
- Zero offset to customise data sets
- Clear display
- Adjustable stand
In addition to the features listed above, the ChargeSense Charge Analyser has the following additional features:
- Built-in titrator, two titrant pumps
- Cationic and anionic titration
- pH measurement
- Temperature measurement
Pi’s range of LabSense Laboratory Charge Analysers are an essential coagulation optimisation tool for water treatment. LabSense allows the user to determine the ideal coagulant dosage needed to achieve optimum NTU and TOC reduction in typically less than 5 minutes, earning it the description “5 minute jar tester”.

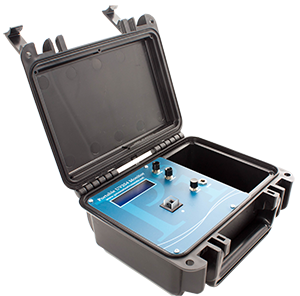

With the UV254 Portable range of UV254 hand held meters you get a simple and reliable means of testing any water for UV transmittance (UVT) and UV absorbance (UVA). Used to provide quick (less than 1 min) information on site, the UV254 Portable provides an invaluable tool to water treatment engineers, essential for verifying an online analyser reading or as an independent measurement."The support from Pi and its partners is superb. They go above and beyond to ensure that, not only is their equipment perfect but that the process is working great too. Five Stars!"
